Location-independent fast charging solution for maximum flexibility
Battery-supported fast charging solutions for maximum flexibility
ELMI Power is revolutionizing fast charging with our battery-supported fast charging solutions – completely without grid expansion. Thanks to modular high-performance battery storage systems, you can save up to 80% TCO and be up and running in weeks. We offer systems with fully integrated battery storage in the charging stations as well as modular solution concepts. Discover our products such as the ELMI Dispenser, the ELMI Hubs and the ELMI GMAX storage system.
Advantages of battery-supported fast charging solutions
Our battery-based fast charging solutions are not only flexibly scalable, but also significantly reduce your investment costs. As the ideal solution for CPOs, EPCs and anyone looking for a fast, flexible and reliable charging infrastructure, they reduce the total cost of ownership (TCO) by up to 80%.
Battery-powered ultra-fast charging station
Efficient, modular and cost-effective charging infrastructure for ultra-fast charging with battery storage for greater independence from grid expansion. Simple AC-side connection without lengthy grid expansion.

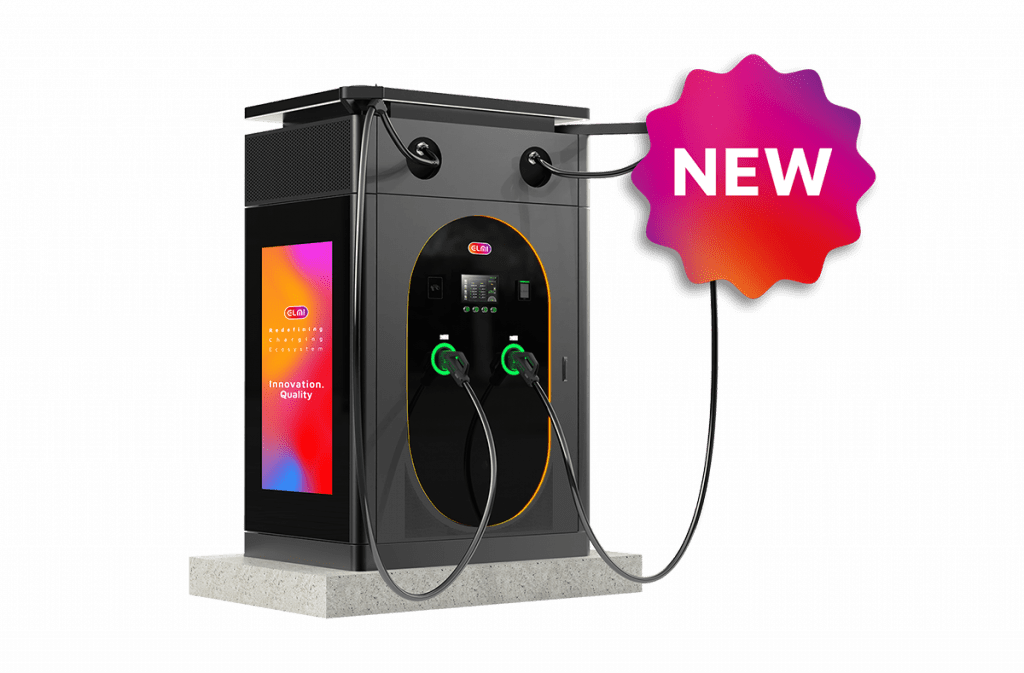

ELMI Dispenser 400: Compact, location-independent solution
Operated with the Hub 400 BSC or the Hub 600. The ELMI Dispenser 400 is part of our battery-supported fast charging solutions – ideal for gas stations and shopping centers. The Dispenser is a powerful DC fast charger with a maximum charging capacity of 400 kW and two charging points (when operating with ELMI Hubs). Thanks to the integrated 46-inch advertising display, it offers additional revenue streams through targeted advertising. Ideal for gas stations, shopping centers and public charging points.
Main features:
- 400 kW charging power for ultra-fast charging
- 2 x 400 A charging current per dispenser
- 46-inch 4K display for ad revenue and branding
- Compliant with regulations and ideal for public locations
- Compatible with all standard payment terminals
Available in many configurations - including the cheaper version for fleets.
Customizable Features:
- Steel frame for corporate-design wrapping (replaces marketing screen)
- Extra-long cables for e-truck charging
- Optional payment terminals
- Perfectly paired with ELMI Hub 600 and large commercial storage systems
ELMI Hub 400 BSC - battery-supported fast charging solution for flexible charging
Operated with the ELMI Dispenser. The battery-powered ELMI Hub 400 BSC only requires a 20-70 kVA grid connection. It provides 400 kW DC charging with only 20-70 kVA grid connection. Thanks to the integrated storage system with 340 kWh, the grid connection does not need to be extended, thus enabling charging stations at locations with limited grid capacity. Ideal for fleets, businesses & CPOs.
Important features:
- Only 20-70 kVA grid connection required – simple AC-side “Plug & Play” setup
- 400 kW fast charging for up to 3 ELMI Dispenser 400 units
- 340 kWh battery storage for peak shaving & PV surplus utilization
- Seamless integration with local EMS (Energy Management System) and automated energy trading for added monetization
The ELMI Hub 600 - Powerful basis for battery-supported fast charging solutions
Operates with the ELMI Dispenser and external storage solutions such as the GMAX. The ELMI Hub 600 is the powerful basis for battery-supported fast charging solutions in the megawatt range. It offers 600 kW DC charging power for up to 6 ELMI Dispenser 400 and can be operated either with an extended grid connection or in combination with PV power and commercial storage. Ideal for logistics centers, car dealerships and locations with high charging requirements.
Important features:
- 600 kW fast charging for up to 12 charging points
- Modular design allows easy expansion to megawatt charging
- Ideal when combined with battery storage for enhanced flexibility
ELMI GMAX: Battery-backed storage for fast charging
The ELMI GMAX is the perfect addition to your location-independent fast-charging solution: With 215 kWh storage capacity and 100 kW grid connection, it enables off-grid charging and peak load management – ideal for businesses, logistics, and car dealerships with solar systems or fluctuating load profiles.
Key Features:
- 215 kWh capacity at 100 kW power – scalable to 1.2 MWh
- Modular design for easy integration into existing charging infrastructure
- Built-in inverter & controller for seamless communication with grid and EMS
Ideal for:
- Energy trading and peak shaving
- Location-independent solutions with limited grid access
Renewable energy and cleantech are in our DNA. With over 40 years of experience in this field, we know what is important. Our battery-based fast-charging solutions combine what must go together for the energy transition: ROI and sustainability.
Engineered in Germany – made for Return on Investment (ROI).
40 % lower investment costs
80% lower TCO
72 weeks faster implementation
Modular and flexible
